This application turns the Flipper Zero into a BTHome beacon, and can be used to integrate the Flipper with home automation systems that support BTHome, such as Home Assistant.

BTHome is an open standard for broadcasting sensor data over Bluetooth Low Energy (BLE). It allows devices to transmit sensor readings (temperature, humidity, battery level, button events, etc.) without requiring pairing or an active connection.

Pressing any direction on the Flipper Zero D-pad (Up, Down, Left, Right, OK) sends a BTHome button event. Each direction maps to a separate BTHome button object, so Home Assistant sees them as button, button_2, button_3, button_4, and button_5 (OK, Up, Down, Left, Right respectively). Short and long presses are both supported. The Flipper's battery percentage is also included in each beacon.

Building

Install ufbt into a virtual environment:

python3 -m venv .venv
.venv/bin/pip install ufbt

Then build from the project root:

.venv/bin/ufbt

The first run downloads the Flipper SDK and compiler toolchain automatically. The finished app is written to:

dist/bt_home_controller.fap

Installing on the Flipper

Open qFlipper, connect your Flipper via USB, and use the file manager to copy dist/bt_home_controller.fap to:

SD:/apps/Bluetooth/

The app will then appear in Apps → Bluetooth → BT Home Controller on the Flipper.

Home Assistant setup

The first step is setting up the BTHome integration in Home Assistant.

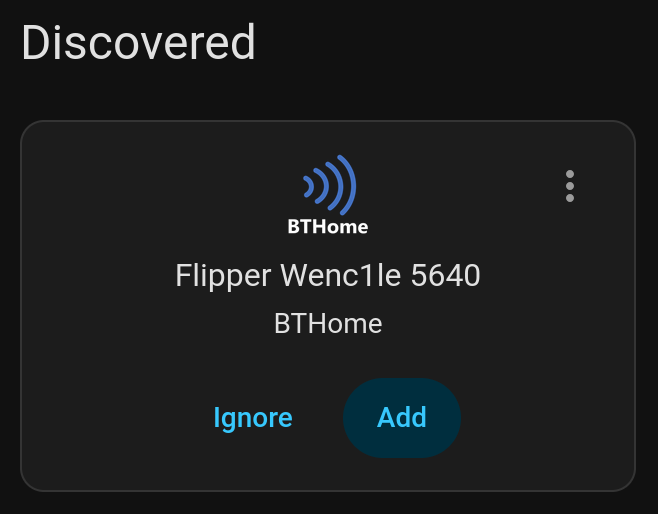

Once setup, the Flipper should be automatically discovered after pressing any D-pad button once:

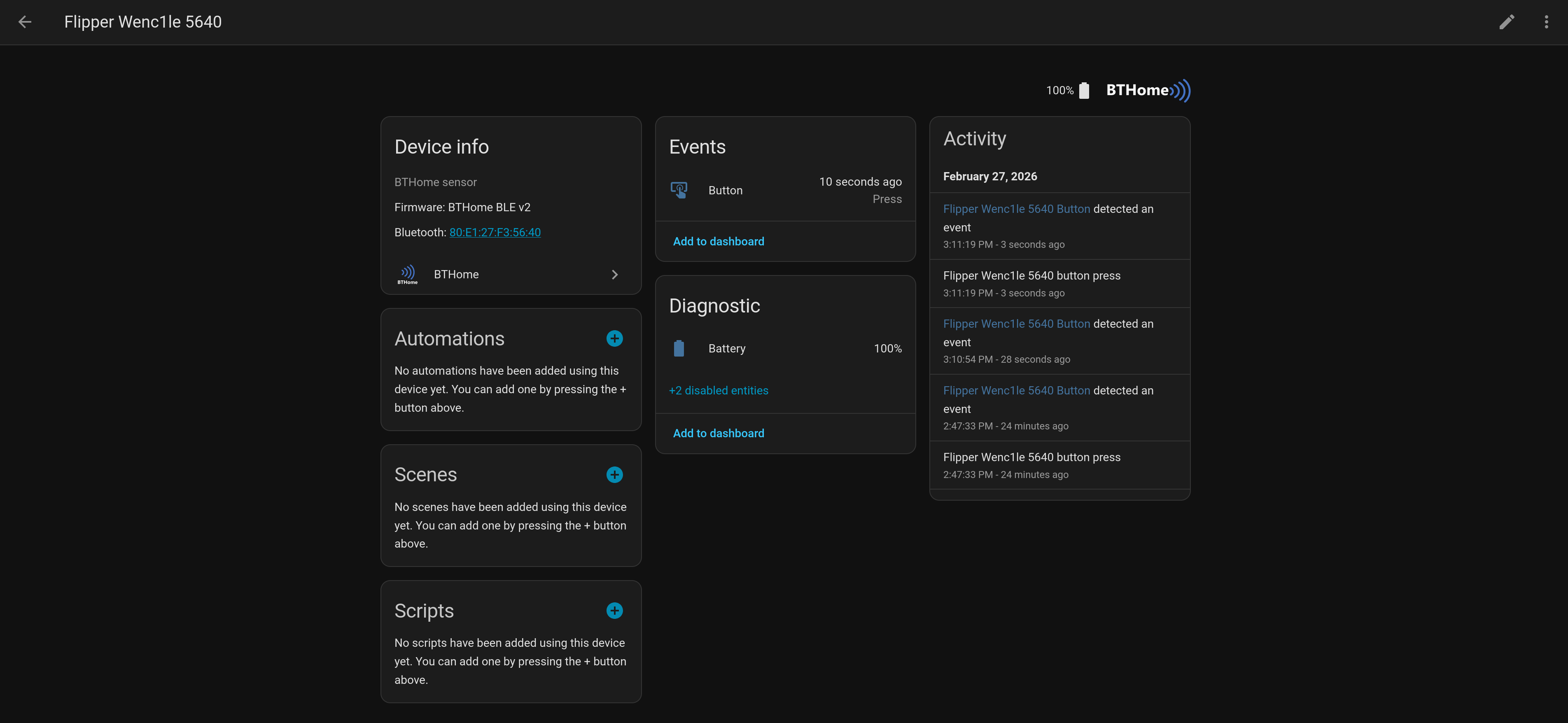

The device's page will then show the current battery status and its events:
