- Double press and long press detection per button (5 buttons × 3 event types = 15 distinct BTHome events) - New circular d-pad UI: large ring with chevron arrows, numbered buttons (1=centre, 2=up, 3=down, 4=left, 5=right) outside/inside the ring - Bluetooth icon asset (bluetooth_10x10.png) in top-left via canvas_draw_icon - Back arrow icon (Pin_back_arrow_10x8.png) bottom-right as exit hint - Version v0.3 bottom-left; direction + event label centred when active - Thread-safe timer callbacks via view_dispatcher_send_custom_event Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01EYNXvRg4xjHHE9oPH9kYYU
This application turns the Flipper Zero into a BTHome beacon, and can be used to integrate the Flipper with home automation systems that support BTHome, such as Home Assistant.
BTHome is an open standard for broadcasting sensor data over Bluetooth Low Energy (BLE). It allows devices to transmit sensor readings (temperature, humidity, battery level, button events, etc.) without requiring pairing or an active connection.
Pressing any direction on the Flipper Zero D-pad (Up, Down, Left, Right, OK)
sends a BTHome button event. Each direction maps to a separate BTHome button
object, so Home Assistant sees them as button, button_2, button_3,
button_4, and button_5 (OK, Up, Down, Left, Right respectively). Short and
long presses are both supported. The Flipper's battery percentage is also
included in each beacon.
Building
Install ufbt into a virtual environment:
python3 -m venv .venv
.venv/bin/pip install ufbt
Then build from the project root:
.venv/bin/ufbt
The first run downloads the Flipper SDK and compiler toolchain automatically. The finished app is written to:
dist/bt_home_controller.fap
Installing on the Flipper
Open qFlipper, connect your Flipper via USB,
and use the file manager to copy dist/bt_home_controller.fap to:
SD:/apps/Bluetooth/
The app will then appear in Apps → Bluetooth → BT Home Controller on the Flipper.
Home Assistant setup
The first step is setting up the BTHome integration in Home Assistant.

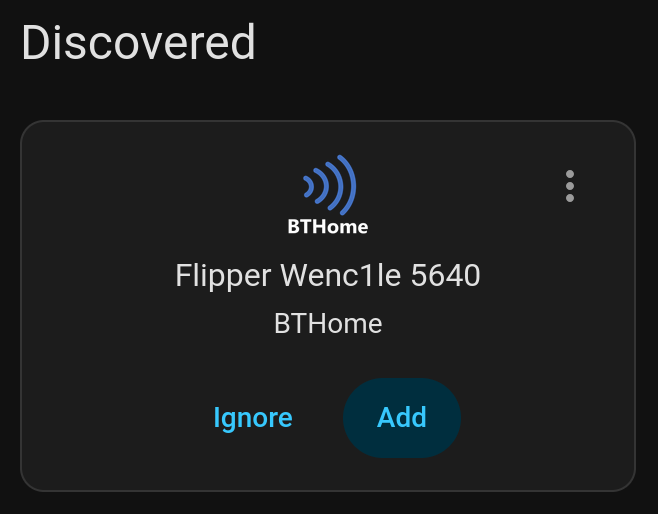

Once setup, the Flipper should be automatically discovered after pressing any D-pad button once:

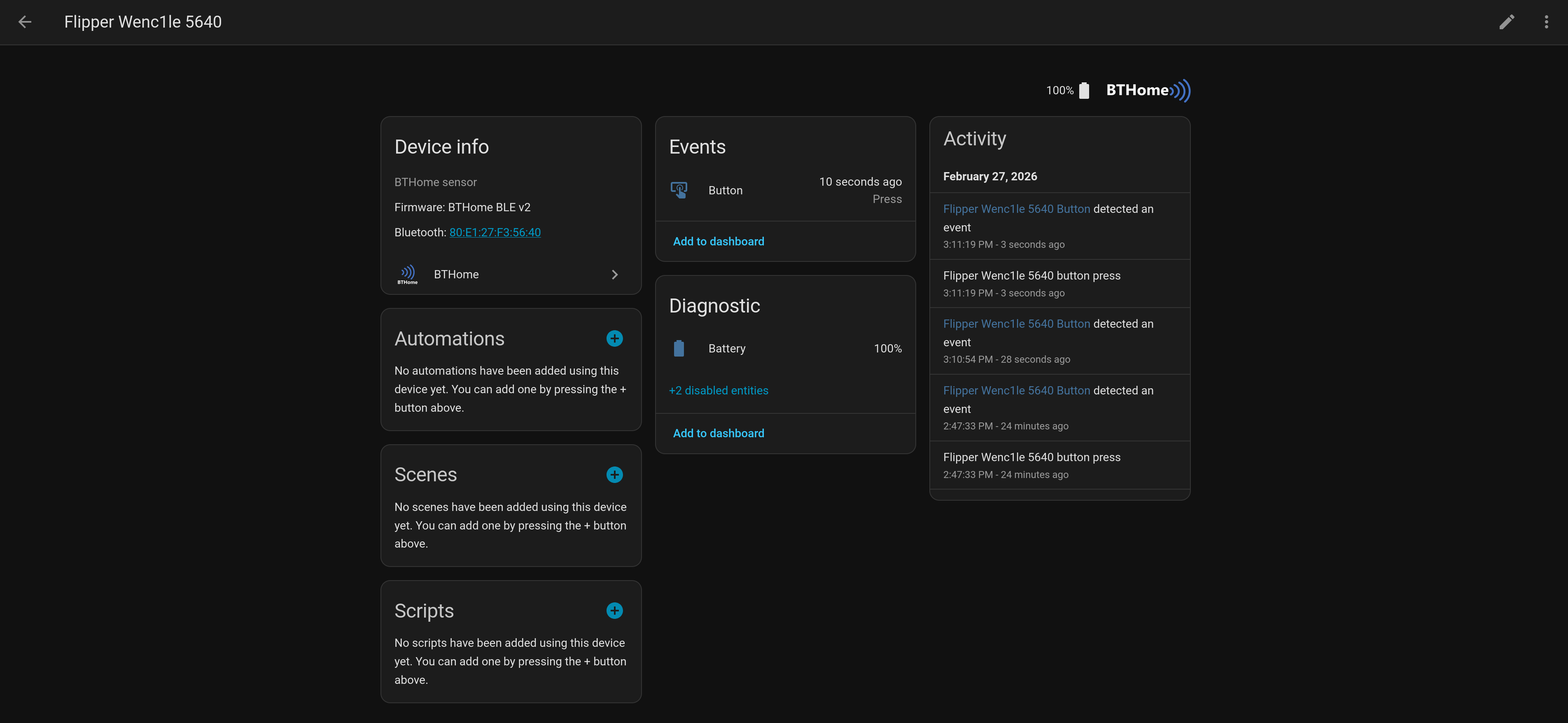

The device's page will then show the current battery status and its events:
